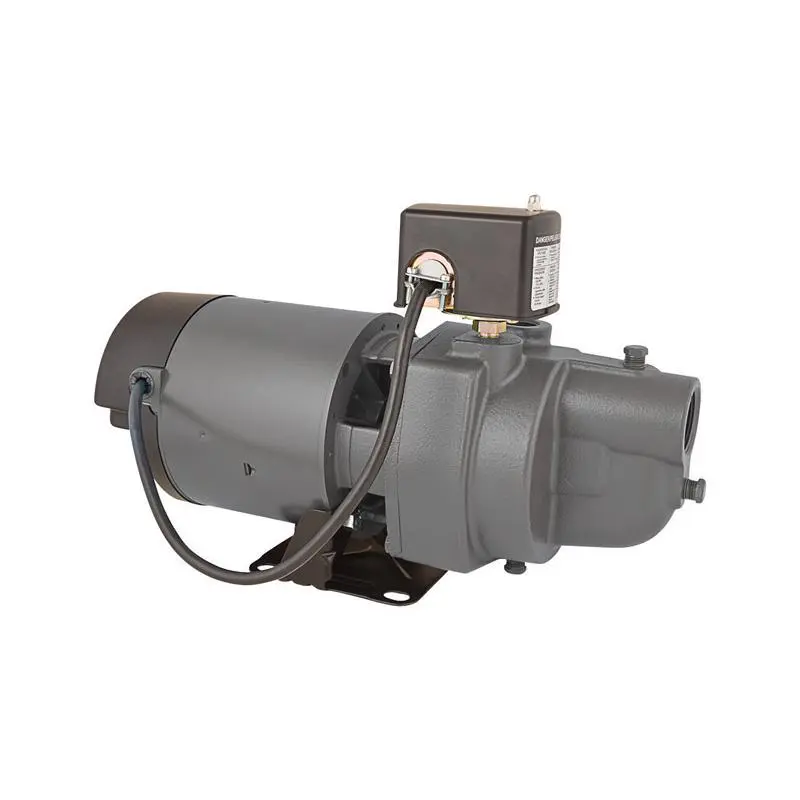

The ES07S 3/4HP jet pump is specifically designed for shallow well applications with suction lifts up to 25 feet. 1-1/4″ suction and 3/4″ discharge. Ideal for homes, farms, cottages and booster service. Each unit is capable of delivering enough pressure required for the efficient use of today’s water-using appliances. Single-phase, 60 Hz, 3450 RPM, dual-voltage (115V/230V) motor features Uni-Frame construction, copper windings, double-ball bearings and overload protection with automatic restart.
- UPC: 054757002084
- Manufacturer Part No: ES07S5
- Powered By: AC
- Minimum Temperature: 40 °F
- With Tank: No
- Maximum Temperature: 130 °F
- Agency Compliance: CSA and UL
- Amps: 13.0/6.5 amps
- Phase: Single-phase
- Hertz: 60 Hz
- Weight: 42 lb.
- Horsepower: 3/4 HP
- Width: 10.6 in.
- Inlet Size: 1-1/4 in.
- Pump Type: Shallow
- Warranty: 2 year Limited Parts and Labor
- Maximum Feet of Head: 25 ft.
- Brand Name: Star Water Systems
- Stages: Single Stage
- Height: 11 in.
- Pump Switch Type: Pressure
- Self Priming: Non-Self Priming
- Thermally Protected: Yes
- Volts: 115/230 V
- Product Type: Well Pump
- Corrosion Resistant: Yes
- RPM: 3450 RPM
- Impeller Type: Precision-Balanced, Molded Thermoplastic
- Hardware Included: No
- Discharge Pipe Size: 1 in.
- Depth: 19.5 in.
- Housing Material: Cast Iron
- Maximum Discharge Flow: 930 gph
